Knapsack Style 100w Pulse Fiber Laser Cleaner
Message
Email

Product Detail

Video:



Product Introduction:

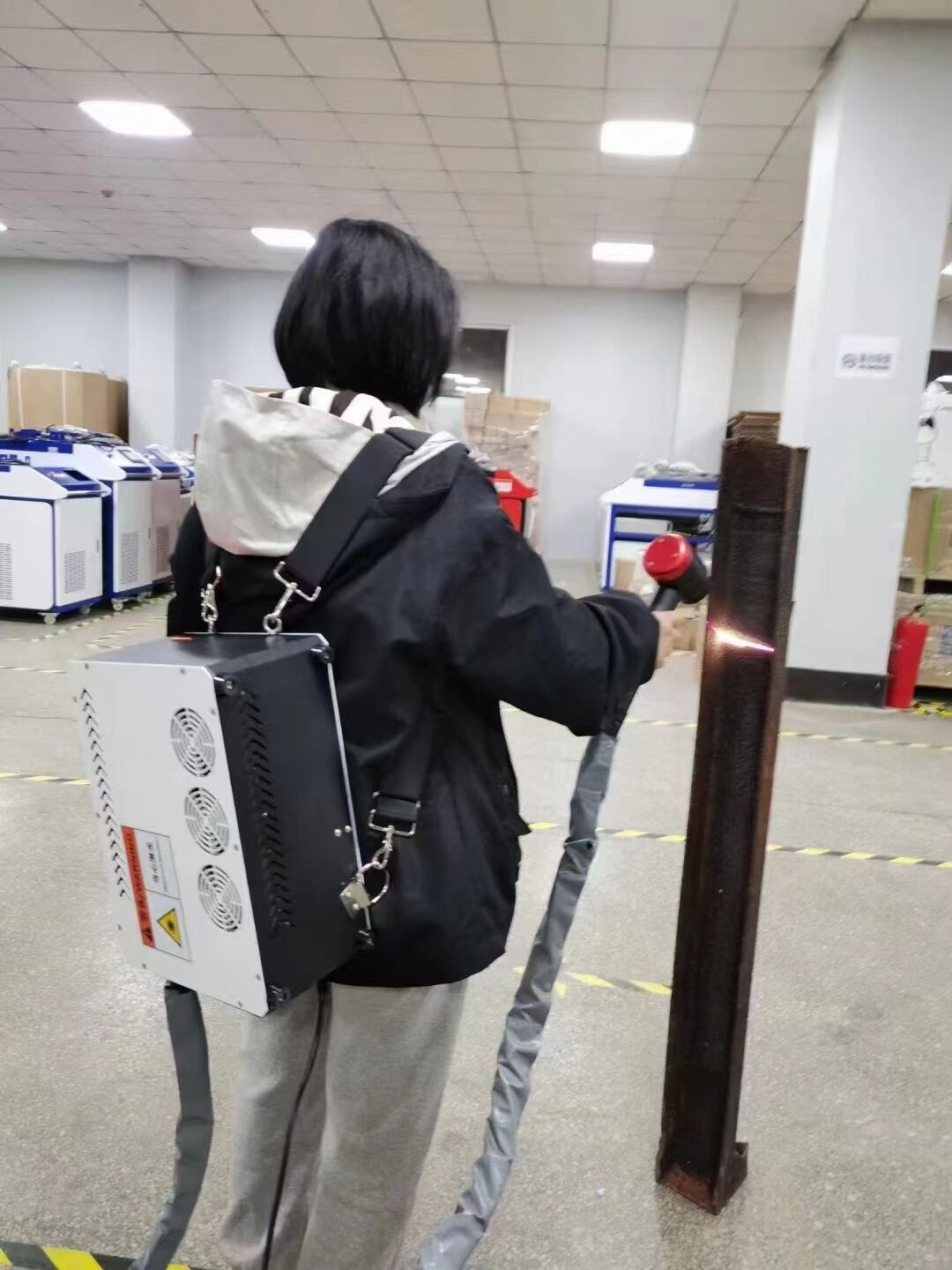

1. The host is equipped with a strap, which is convenient for outdoor use. The laser cleaning head is hand-held, equipped with 1.5 meters of optical fiber;

2. The laser adopts 100W pulsed fiber laser without water cooling;

3. Powered by a plug-in battery. When the laser power is 60W, each battery can provide continuous cleaning for 40 minutes;

4. 220V power supply or battery power supply can be switched freely.


Features:

1. Equipped with a plug-in battery, it can be used outdoors or in other environments where it is not convenient to plug in;

2. The whole machine is made of aluminum alloy and engineering plastics, which is light in weight and easy to carry;

3. Laser power 100w, backpack cleaning machine, higher efficiency;

4. The lightweight design of the battery can ensure a long enough cleaning time;

5. The beam adopts Pulse mode, which is effective for rust removal, carbon steel and stainless steel weld seam cleaning and other applications..


Specifications:

Voltage:

Single-phase 220V±10%, 50/60Hz AC power

System power consumption:

Less than 100W

Working environment temperature:

-10℃40℃

Light Pass Rate:

≥98%

Laser power adjustment:

10%-100% continuous gradient adjustable

Laser pulse frequency adjustment:

1kHz-4000kHz continuous fade adjustable (support customization)

Focal length

Standard 160mm (210mm/254mm/330mm/420mm optional)

Scan Width

0mm-100mm available

Scanning frequency

Maximum 300Hz

Maximum scan line speed

10m/s


Application & Cleaning Samples:

Favored by fabricators of auto parts, rubber molds, high-end machine tools, tire molds, rails and more, this pulsed laser cleaning machine handles rusts, oil, paints, coating, oxide layer, resin and other contamination in a more controllable and precise way while making processes more reliable and energy-efficient.
